Tcursor® series: Rudense® for Area Selective Deposition

Rudense

precursor, thermal properties

                    Melting point        :27°C
                    Vapor pressure    :0.1Torr @76°C
                    Decomp. temp.    :230°C
                    Viscosity              :15cP @65°C

Thermal Properties


Thermal CVD with NH3

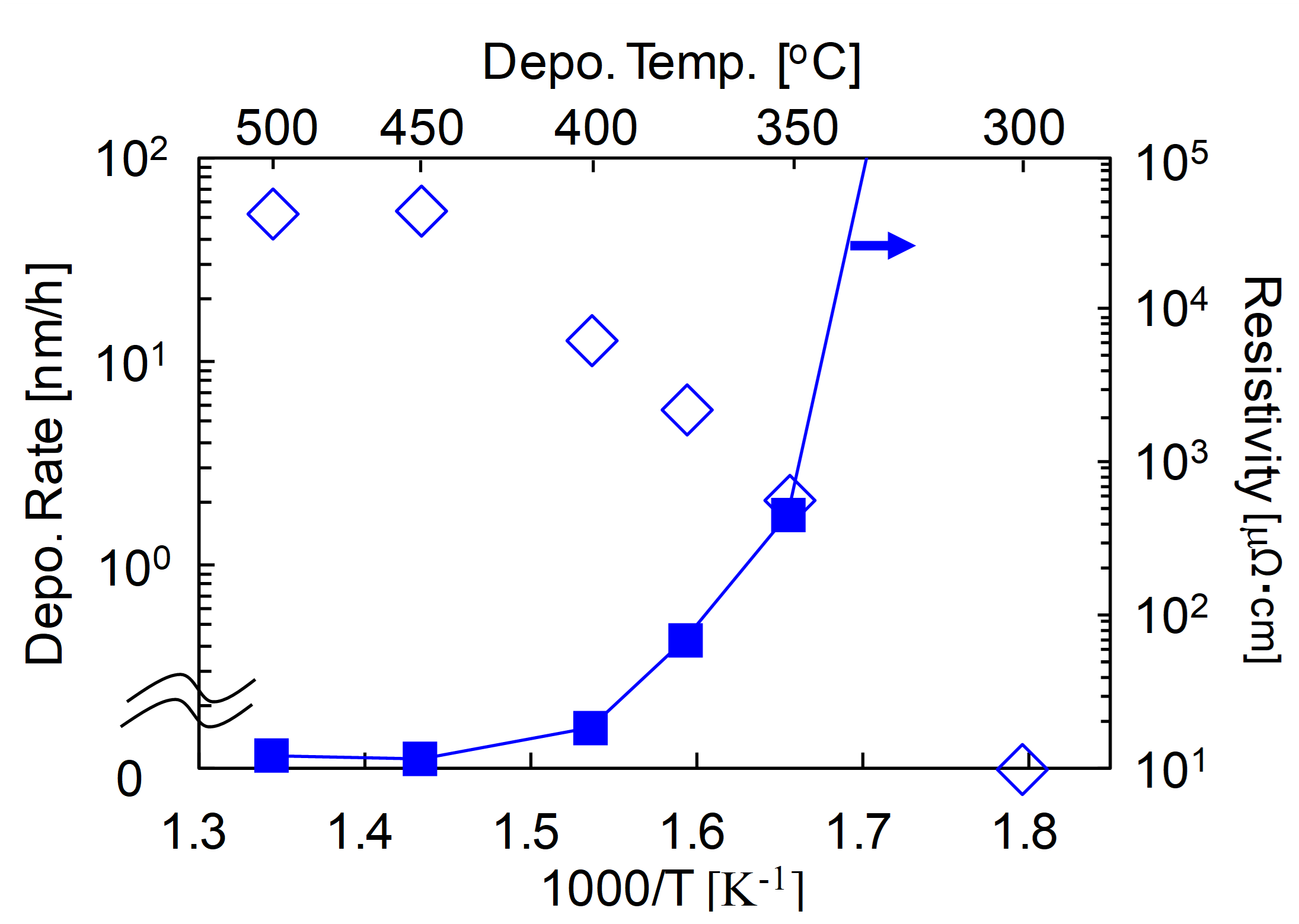

Temperature Dependency (on SiO2 sub.)



Step Coverage


Step coverage ~80%(Aspect ratio ~4)

Area Selective Deposition with Non-Oxidative Conditions (CVD Process)

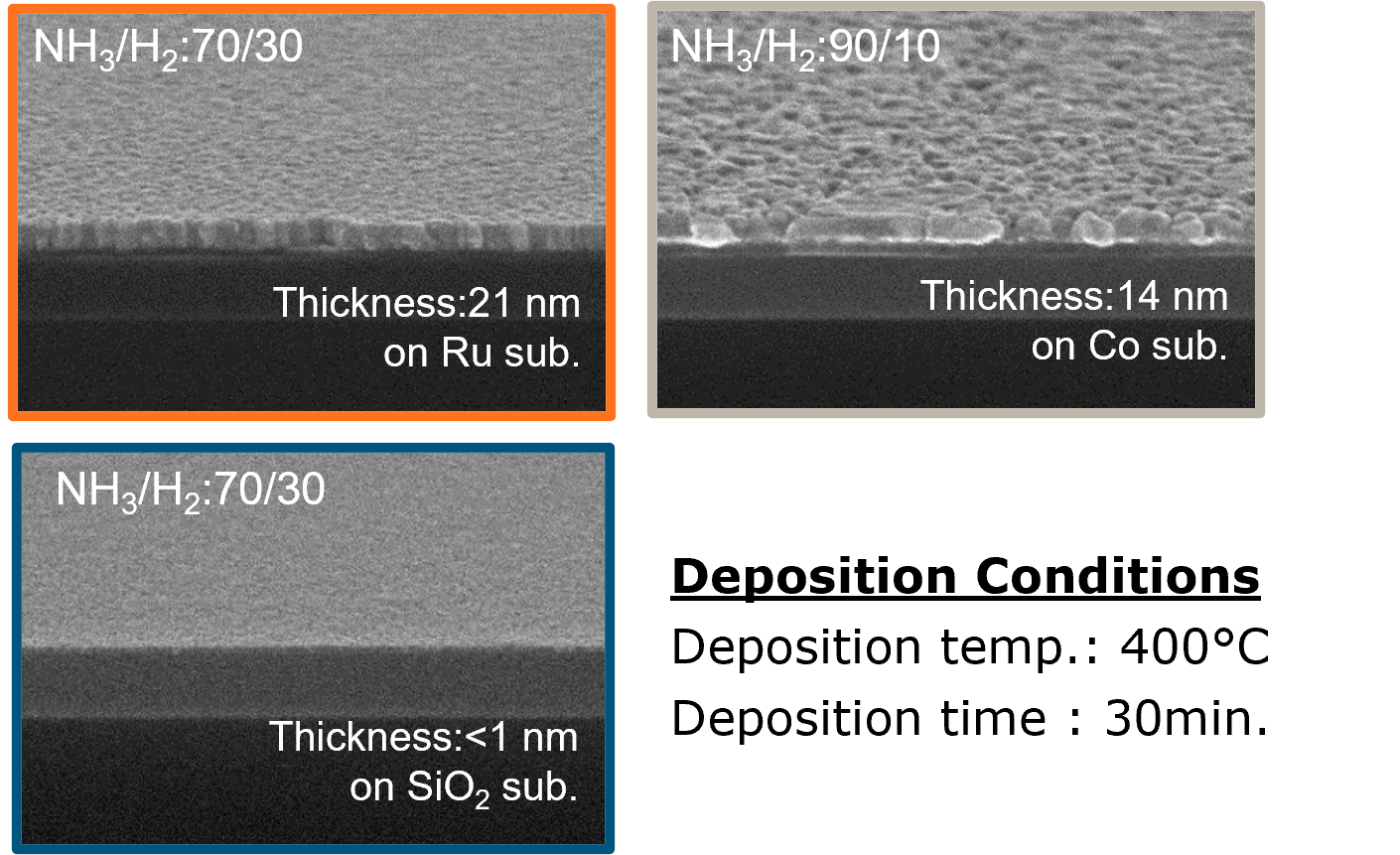

5-update.png		 SEM Images
